Infeed Modules

  • Idler Module with Infeed Power Transfer

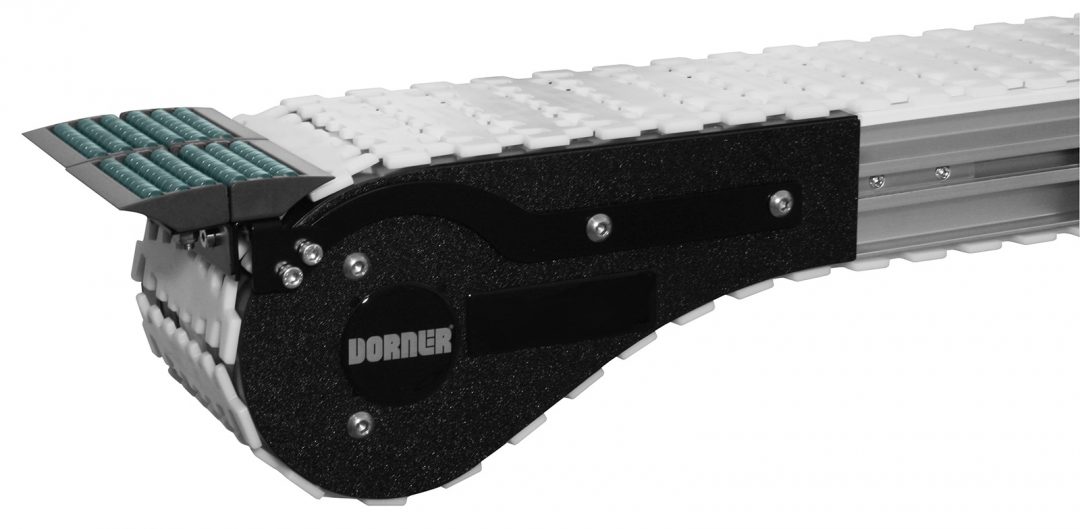

    Idler Module with Infeed Power Transfer

Benefits of FlexMove Infeed Module:



Infeed Module

  • Lengths:
    • Minimum = 481 mm (1.58 in)
    • Maximum = 29 m (95 ft)
    • Minimum tail only (Attached to vertical and horizontal bend modules) = 329 mm (1.08 ft) (contact factory)
  • Optional 20 mm diameter x 38 mm (1.5 in) long output shaft for encoders and other devices

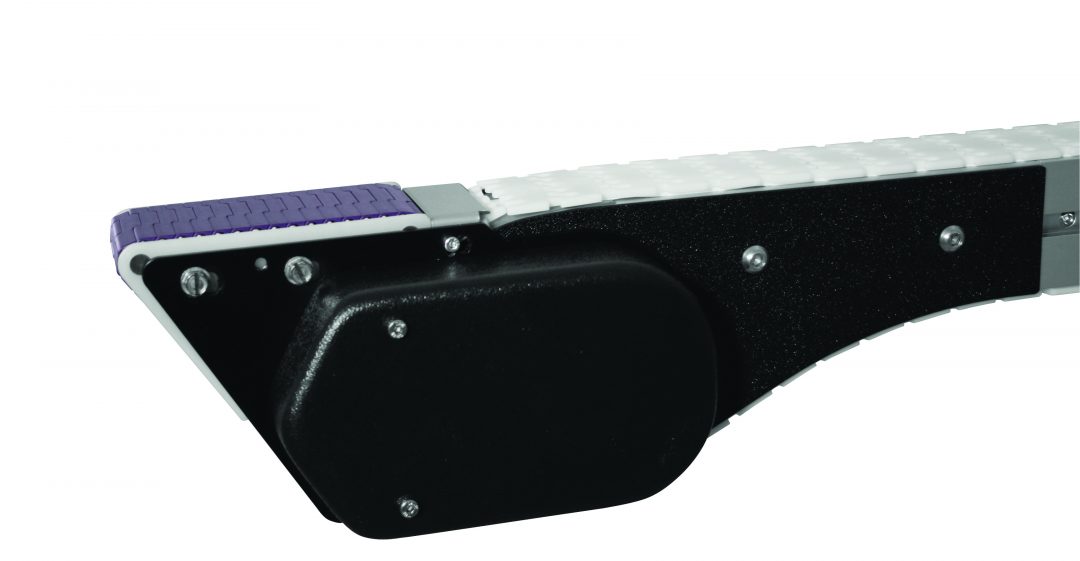

Infeed Module with Power Transfer

  • Power transfer available for small part in-line transfer applications – please see Catalog for more information
  • Not available for friction top chain
  • Uses a 10 mm micro pitch chain slave driven off infeed module
  • Can be used to transfer parts as small as 3″ in diameter
