FlexMove Conveyors

  • FlexMove Conveyor
    Capable of multiple curves as well as inclines and declines on a single conveyor.
  • FlexMove conveyors are available in 7 standard widths in standard flat top or friction insert chain.
  • FlexMove Conveyor
    Inclines and Declines are available from 5 degrees up to 30 degrees.

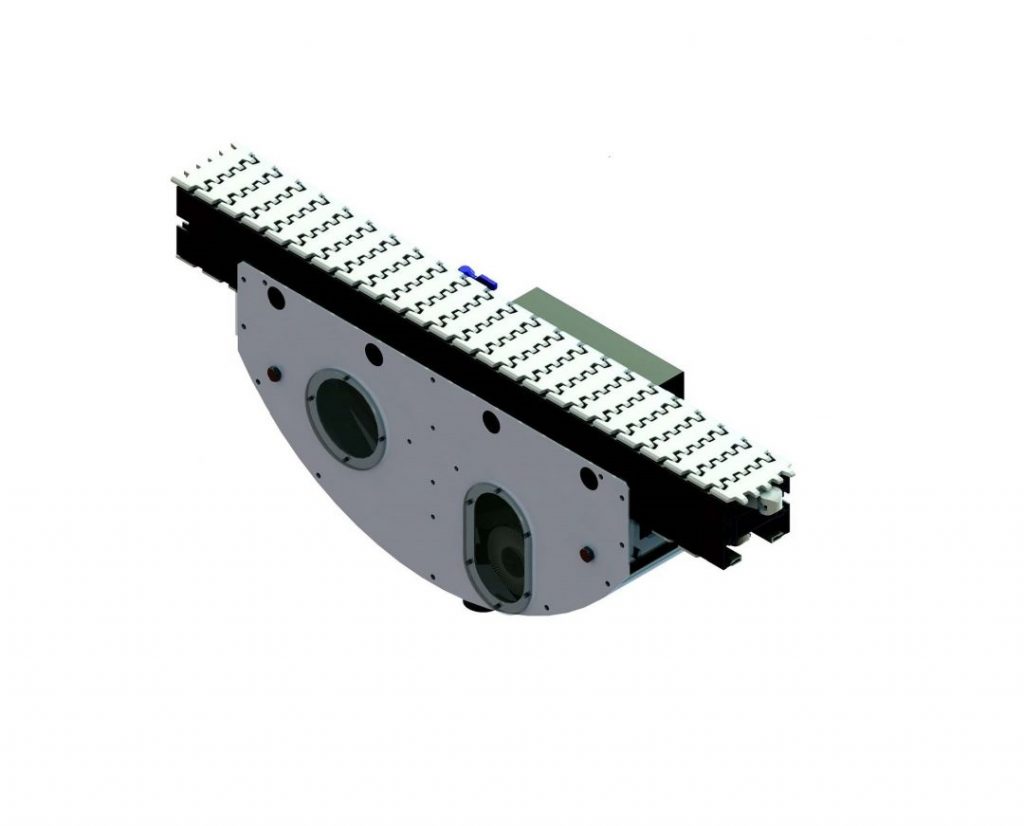

  • The compact weighted take up is designed to prevent catenary sag and eliminate pinch points.
  • The optional powered transfer allows for smooth end transfers for products as small as 3” in diameter.
  • Engineered to easily integrate with other conveyors, machinery and equipment.

Benefits of FlexMove Conveyor:

  • Powered transfers allow for smooth end transfers for products as small as 3″ in diameter
  • Unique, compact weighted take up is designed to prevent catenary sag and eliminate potential pinch points for safety
  • Optional top running loop features a patented top running drive design for added strength, flexibility and load capacities

Chain types:

      • Standard
        • Low Friction
        • Friction Insert
      • Specialty & Application Specific
        • Conductive
        •  Cleated
        • Roller Top
        • Magnet Top
        •  Safety
        • and More!

    Standard Widths:

        • 45 mm
        • 65 mm
        • 85 mm
        • 105 mm
        • 150 mm
        • 180 mm
        • 260 mm

Lengths: 0.6 m to 30 m (2 ft to 98 ft)

Loads & Speeds:

  • Up to 272 kg (600 lbs)
  • Up to 76 mpm (250 fpm)

Applications:

  • Part Handling
  • Transfers
  • Tight Spaces
  • Assembly Automation
  • Packaging
  • Machine Conveyance
  • Elevation Changes
  • Accumulation
  • Buffering
  • Complex Configurations
  • Long Lengths
  • Curves, Jogs, Incline, Decline

Manuals & Literature

Engineering Manuals Pages File Size
FlexMove Engineering Manual 232 50.2 MB



Literature Pages File Size
FlexMove Brochure 6 2.9 MB
