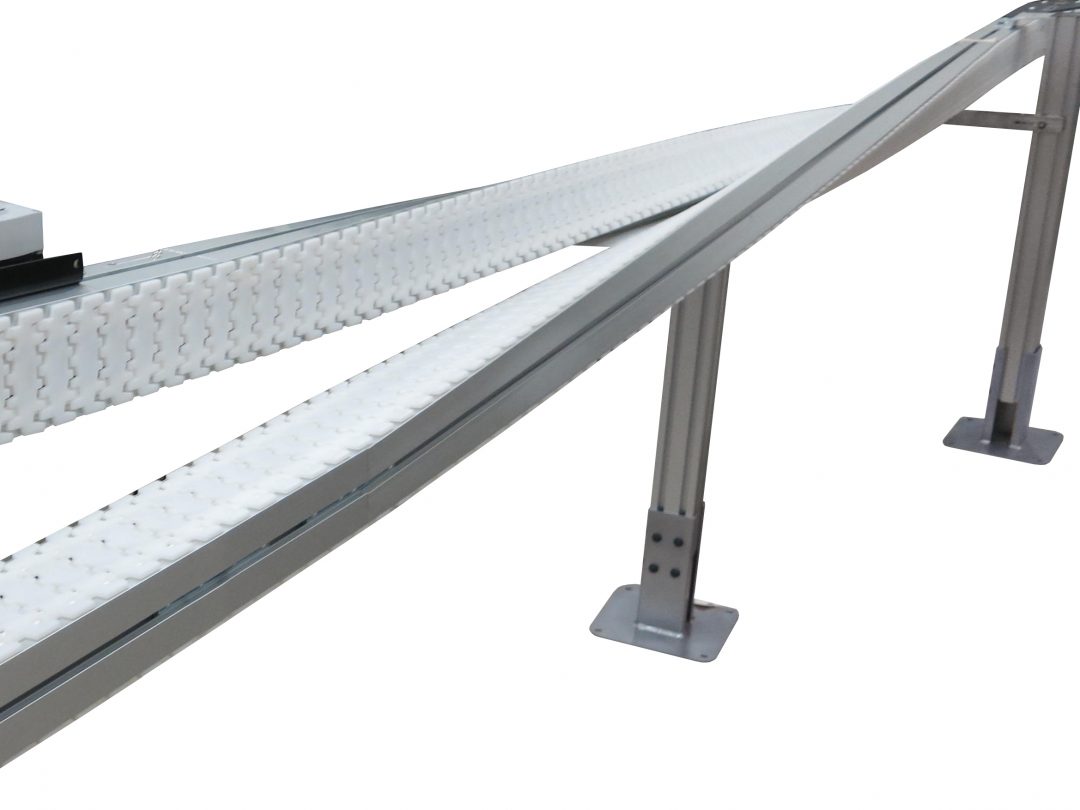

FlexMove Twist Conveyors

  •

Benefits of FlexMove Twist Conveyor:

Rotate products easily and efficiently with flexible chain twist conveyors.

Features:
  • Positively control the product during rotation
  • Provides product rotation for access to multiple sides of packages
  • No change over –can handle multiple package sizes at the same time
  • No product guiding required
  • Products do not need to be gapped or spaced
  • In-line transfers
Options & Accessories
  • Standard FlexMove support stands and guiding options are available
  • All standard FlexMove mounting packages and gearmotors are available
  • Optional powered and roller transfers
Specifications:
  • Available Widths: 65, 85, 105, 180 mm wide
  • Requires 2 independent FlexMove conveyors
  • Helical twists up to 90 degrees per conveyor pair
  • 90 degree twist is approximately 3 m (10 ft) long
  • Speeds Up to 55 mpm (180 fpm)

Manuals & Literature

Engineering ManualsPagesFile Size
Engineering Manual23250.2 MB



LiteraturePagesFile Size
Brochure62.9 MB
Twist Brochure11.52 MB
